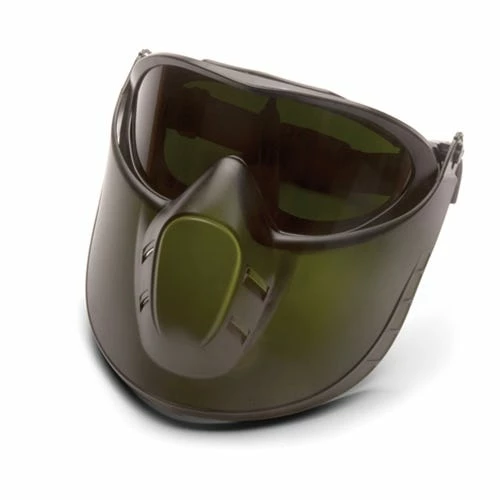

Pyramex Safety Pyramex Capstone Green Tinted Face Shield With IR5 H2X Anti-Fog Lens Goggle GG504TSHIELDIR5

Pyramex

Capstone Green Tinted Face shield with IR5 H2X Anti-Fog Lens Goggle GG504DTSHIELDIR5

FEATURES:

• Fully adjustable elastic band.
• Fits over prescription glasses.
• Lens is coated to prevent fogging.
• Soft vinyl goggle body conforms to facial contours.
• Goggle provides protection against dust and chemical splash.
• Scratch resistant polycarbonate lens provides 99% UVA/B/C protection.
• Removable vent caps allow the user to remove when more ventilation is required or leave in place for unsurpassed chemical splash resistance.

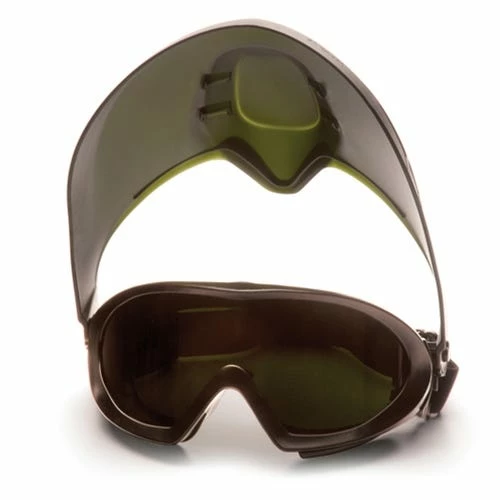

• Goggle incorporated with removable shield provides full face protection.
• 4 ventilation holes provide appropriate airflow.
• Ratchet shield allows user to open or close in 3 positions for adjustment.
• Polycarbonate shield conforms to the face offering increased impact and dust protection.
• 5.0 IR Filter Lens: Commonly used around welding sites or for medium to heavy cutting and medium to heavy gas welding.

SPECIFICATIONS:

Shield Specs
Shield Thickness:	2.0mm
Weight:	78gm
Shield size vertical:	177.64mm
Shield size horizontal:	195.58mm
Shield size diagonal:	224.24mm
Overall width (hinge-hinge):	185mm
Goggle Specs
Lens Thickness:	2.3mm
Weight:	132gm
Lens size vertical:	78mm
Lens size diagonal:	154mm
Overall Length (Lens-Tip):	91mm
Overall Width (Hinge-Hinge):	180mm
Closest point between lens:	N/A; single lens
Strap Length:	232-365mm
PD: 68mm Bridge:	45mm
Lens Base:	5.5 curve
Disposable Visor Specs
Lens Thickness:	0.1mm
Weight:	2.4gm
Lens size vertical:	6.9mm
Overall Width:	32.4mm
Bridge:	3.3mm
Visible Light Transmitted 380-780nm	2%
UVA; UVB Blocked 200-380nm	99%
Blue Light Blocked 400-700nm	99%
IR Blocked 780-2000nm	99%

“
