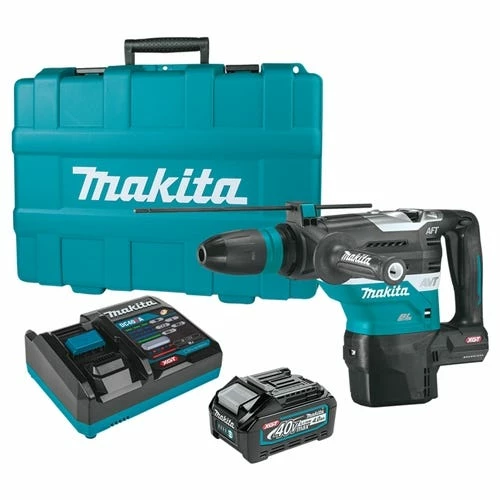

Makita Tools Makita 40V Max XGT 1-9/16″ AVT SDS-MAX Rotary Hammer (4.0Ah) Kit GRH05M1

Makita

40V Max XGT Brushless Cordless 1-9/16 AVT SDS-MAX Rotary Hammer (4.0Ah) Kit GRH05M1

The 40V max XGT Brushless 1-9/16″ AVT Rotary Hammer Kit (GRH05M1) is a cordless concrete solution designed for heavy-load applications. It delivers the power; speed; and run-time for corded demands; without the cord. The GRH05M1 is ideal for a range of trades including mechanical/electrical/plumbing contractors; concrete contractors; road and bridge contractors; utility workers; pest control; maintenance operations; and more. It accepts SDS-MAX bits.

FEATURES:

• OUTPOWER: Makita-built brushless motor along with 40V max XGT battery combine to deliver the power performance required for heavy-load application.
• OUTSMART: Auto-start Wireless System (AWS) utilizes Bluetooth technology for wireless power-on/off communication between tool and dust extractor (AWS Transmitter sold separately).
• OUTLAST: Extreme Protection Technology (XPT) is engineered for improved dust and water resistance for operation in harsh conditions.
• Anti-Vibration Technology (AVT) is an internal counterbalance system along with vibration-absorbing handles that work together to reduce vibration.
• Active Feedback-Sensing Technology (AFT) electronically turns off the motor if rotation of bit is suddenly forced to stop.
• Electric brake allows the tool to be repositioned faster for maximum productivity.
• Dust extraction capability with optional Makita Dust Attachment Kit.
• Constant speed control automatically applies additional power under load for optimum performance.
• Soft start suppresses start-up reaction for improved accuracy.
• “Soft no-load” function automatically reduces the speed of the motor when idling to help increase tool life and performance.
• 2-mode operation for “Hammering with Rotation” or “Hammering Only” for increased versatility.
• Torque limiting clutch engineered to prevent gear damage by automatically disengaging gears during a bind-up situation.
• 3-year limited warranty on tool; battery and charger.

SPECIFICATIONS:

System	XGT
Max. Capacity (concrete drilling)	1-9/16″
Optimum Range (concrete drilling)	5/8″ – 1-1/4″
Max. Capacity (concrete drilling w/ core bit)	4-1/8″
Impact Energy (ft.lbs.)	8.4
Impact Energy (Joules)	11.4 J
Blows Per Minute (variable speed)	1;450 – 2;900 BPM
No Load Speed (variable speed)	250 – 500 RPM
Bind-Up Control	Yes
Vibration Control	Yes
Vibration (m/s²)	5
Automatic-start Wireless System (AWS)	Capable (transmitter sold separately)
Bit Type	Accepts SDS-MAX
Overall Length	19-3/4″
Power Type	Cordless

INCLUDES:

• (1) 40V Max XGT Brushless Cordless 1-9/16″ AVT SDS-MAX Rotary Hammer (GRH05Z)
• (1) 40V max XGT 4.0Ah Battery (BL4040)
• (1) 40V max XGT Rapid Optimum Charger (DC40RA)
• (1) Side Handle Assembly (123138-5)
• (1) D-Handle Assembly; HR4013C (196792-8)
• (1) Depth Gauge (331955-1)
• (1) Hammer Bit Grease (194683-7)
• (1) CLOTH F/WIPING OIL (443122-7)
• (1) Tool Case

“
