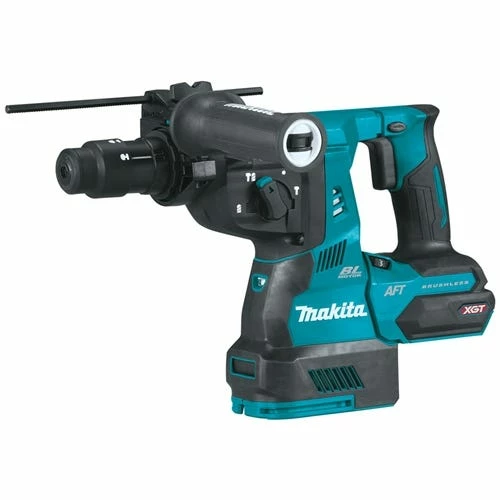

Makita Tools Makita 40V Max XGT 1-1/8″ AVT SDS-PLUS Rotary Hammer W/ Interchangeable Chuck (Tool Only) GRH02Z

Makita

40V Max XGT Brushless Cordless 1-1/8 AVT SDS-PLUS Rotary Hammer w/ Interchangeable Chuck (Tool Only) GRH02Z

The 40V max XGT Brushless 1-1/8” AVT Rotary Hammer with interchangeable chuck (GRH02Z; tool only) is a cordless concrete solution designed for heavy-load applications. Quick change chuck allows for interchangeability from SDS-PLUS to 1/2″ keyless chuck It delivers the power; speed; and run-time for corded demands; without the cord. It is ideal for a range of trades including mechanical/electrical/plumbing contractors; concrete contractors; road and bridge contractors; utility workers; pest control; maintenance operations; and more. It accepts SDS-PLUS bits.

FEATURES:

• OUTPOWER: Makita-built brushless motor along with 40V max XGT battery combine to deliver the power performance required for heavy-load application.
• OUTSMART: Constant speed control automatically applies additional power under load for optimum performance.
• OUTLAST: Overload protection is designed to protect the motor from burnout in abnormally high torque situations.
• Quick change chuck allows for interchangeability from SDS-PLUS to 1/2″ keyless chuck.
• XGT technology delivers up to 135 of 3/8″ holes using a fully charged 40V XGT 4.0Ah battery*
• Active Feedback-Sensing Technology (AFT) electronically turns off the motor if rotation of bit is suddenly forced to stop.
• Anti-Vibration Technology (AVT) is an internal counterbalance system along with vibration-absorbing handles that work together to reduce vibration.
• Dust extraction capability with OSHA Table 1 compliant on-board HEPA Dust Extractor or stand-alone AWS Extractor options.
• Auto-Start Wireless System (AWS) utilizes Bluetooth technology for wireless power-on/off communication between tool and dust extractor (AWS Transmitter and dust extractor sold separately).
• Electric brake allows the tool to be repositioned faster for maximum productivity.
• Torque limiting clutch engineered to prevent gear damage by automatically disengaging gears during a bind-up situation.
• 3-mode operation for “Rotation Only”; “Hammering with Rotation” or “Hammering Only” for multiple applications.
• Extreme Protection Technology (XPT) is engineered for improved dust and water resistance for operation in harsh conditions.
• 3-year limited warranty on tool; battery and charger.

SPECIFICATIONS:

System	XGT
Max. Capacity (concrete drilling)	1-1/8″
Optimum Range (concrete drilling)	3/16″ – 3/4″
Max. Capacity (concrete drilling w/ core bit)	2-9/16″
Impact Energy (ft.lbs.)	2.3
Impact Energy (Joules)	3.2 J
Blows Per Minute (variable speed)	0 – 5;000 BPM
No Load Speed (variable speed)	0 – 980 RPM
Bind-Up Control	Yes
Vibration Control	Yes
Vibration (m/s²)	7.5
Automatic-start Wireless System (AWS)	Capable (transmitter sold separately)
Bit Type	Accepts SDS-PLUS
Overall Length	15-1/4″
Power Type	Cordless

INCLUDES:

• (1) 40V max XGT Brushless 1-1/8″ AVT Rotary Hammer; with Interchangeable Chuck; AWS Capable (GRH02Z)
• (1) Side Handle Assembly (126882-3)
• (1) Grease (194683-7)
• (1) Cloth Towel (443122-7)

“
