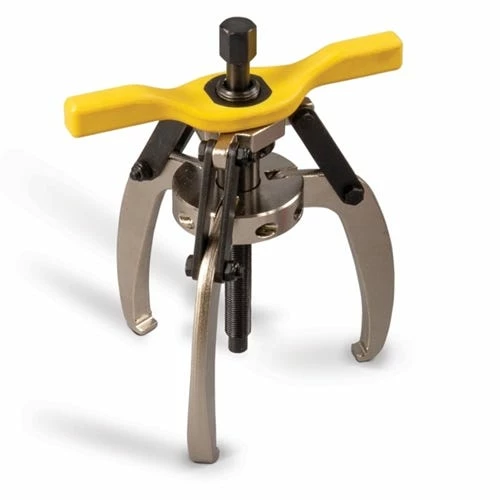

Enerpac 6 Ton Mechanical 3 Jaw Lock-Grip Puller LGM306

Enerpac

6 Ton Mechanical 3 Jaw Lock-Grip Puller LGM306

LGM-Series Pullers are an ideal solution for pulling small to medium-size wheels; sprockets; bearings and other similar shaft mounted parts. The puller’s selfcentering closing system allows all jaws to move simultaneously; making it easy for a single operator to mount the puller and to perform the application. Turning the puller handle locks the jaws onto the application; allowing the desired object to be pulled free when the spindle is turned.

FEATURES:

• Quickly and easily mount on a wide range of applications.
• Lock-on jaws offer a secure grip for safe and easy operation.
• Synchronous jaw movement enables entire pulling job to be performed by a single operator.
• LGM-Series Pullers MUST be used with a point protector if the shaft end does not contain a drilled center hole. One point protector is included with every puller.
• Always wear safety goggles and gloves while using pullers.

SPECIFICATIONS:

Maximum Torque (Ft.lbs)	74
Capacity (imperial tons)	6
Puller Power Source	Mechanical
Maximum Spread (in)	7.32
Minimum Spread (in)	1.18
Maximum Reach (in)	5.59
Number of Jaws	3
