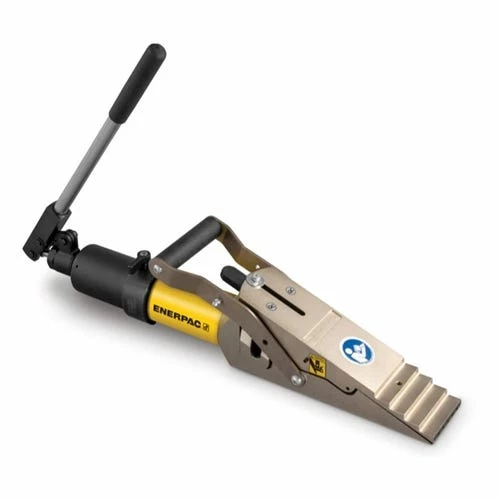

16 Ton Vertical Lifting Wedge w/ Integrated Pump & 0.83 Lifting Height LWC16
Enerpac’s new Lifting Wedge is a convenient and portable tool designed to safely lift and lower heavy objects. Powered by a built-in hydraulic hand pump; the LWC-16 is a ready-to-use tool – no making or breaking hydraulic connections. This compact tool delivers 16 tons of lifting force and requires a clearance gap as small as 0.39 inches.
FEATURES:
- Minimized access gap for greater accessibility on applications with limited insertion space.
- Secure; stable lifting and lowering motion with no slippage.
- Single-acting spring return cylinder allows for automatic; mechanical retraction.
- Integrated hand pump offers greater maneuverability.
- Includes safety block SB2; lifting block LWB1; & carrying case.
SPECIFICATIONS:
| Maximum Operating Pressure (psi) | 10;000 |
|---|---|
| Maximum Spread (in) | 0.83 |
| Power Source | Hydraulic |
| Maximum Lifting Force (ton) | 16 |
| Maximum Lifting Force (imperial tons) | 16 |
| Spreading Force (imperial tons) | 16 |
| Capacity (imperial tons) | 16 |
| Stroke (in) | 0.83 |
| Minimum Clearance Gap (in) | 0.39 |
| Maximum Lift Per Stage | 21 |
| Maximum Lifting Height (in) | 2.02 |
| Maximum Lifting Height Using Stepped Block | 2.72 |
| Tip Clearance (in) | 0.39 |
| Oil Capacity (in3) | – |
