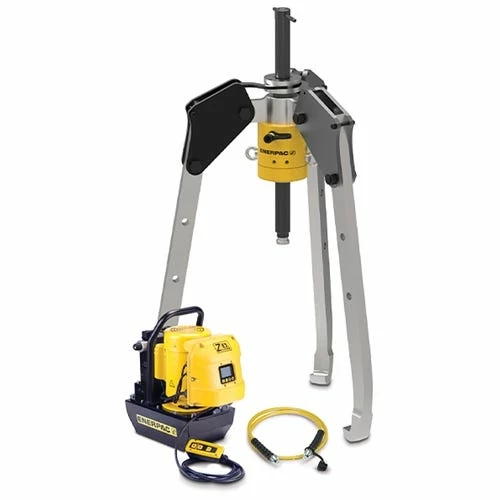

Enerpac 100 Ton Hydraulic Sync Grip Puller Set W/ 230V Electric Pump GPS100EE

Enerpac

100 Ton Hydraulic Sync Grip Puller Set w/ 230V Electric Pump GPS100EE

The Enerpac 100 Ton Puller provides the largest reach; spread; and capacity of the Sync Grip Puller line. The Sync Grip Puller is a controlled solution for the removal of bearings; bushing; gears and pins from shafts during maintenance. There is no need to cut; heat; or torch components that need to be removed from shafts. The Sync Grip Puller removes parts without subjecting them to open flame; which could damage parts or injure the operator. The 100 Ton Sync Grip Puller provides 100 tons of pulling force at a fraction of the price compared to alternative options. The Sync Grip mechanism synchronizes movement of all jaws for simultaneous engagement; enhancing the operator’s control over the tool; simplifying the set-up process and reducing the amount of manpower needed to complete the job. Hydraulic puller jaws fit around the part to be removed; while the spindle applies up to 100 tons of force to remove it. Hydraulically applied pulling force increases pulling capacity and reduces operator fatigue; enabling quicker and easier set up.

FEATURES:

• Sync Grip mechanism synchronizes movement of all jaws for simultaneous engagement.
• Hydraulically applied pulling force increases pulling capacity and reduces operator fatigue.
• Threaded spindle and jaw indexes provide adjustable reach.
• Three-jaw configuration for even load distribution.
• High-strength forged jaws for superior reliability.
• The versatile puller set facilitates safe and easy dismounting in a variety of applications.

SPECIFICATIONS:

Maximum Operating Pressure (PSI)	10;000
Capacity (Imperial Tons)	100
Stroke (in)	3
Pump Power Source	Electric Pump (230V)
Puller Power Source	Hydraulic
Maximum Spread (in)	63″
Maximum Reach (in)	39.37″
Jaw Thickness (in)	2.76″
Jaw Width (in)	1.94″
Jaw Height (in)	1.79″
Jaw Hole Spacing (in)	9.84″

INCLUDES:

• 100 Ton Hydraulic Sync Grip Puller (SGH100)
• 6 ft. Thermo-Plastic High Pressure Hydraulic Hose (HC7206C)
• 230V Electric Pump

“
