Diamond Products Propane 20″ Core Cut 25HP Walk-Behind Concrete Saw CC2525KCP-20

Diamond Products

Propane 20 Concrete Saw CC2525KCP-20

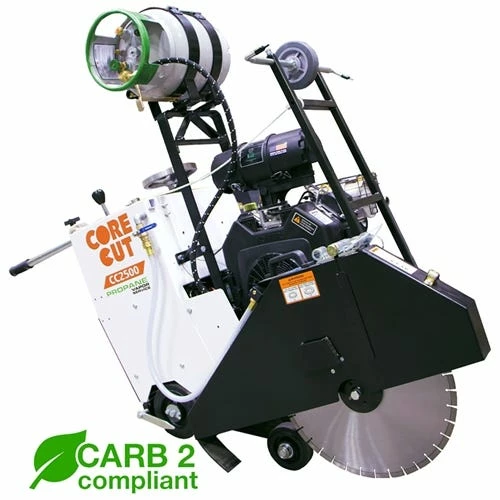

This propane saw features a 25 HP Kohler Command EFI engine converted to propane vapor draw. Weighing in at 1;030 pounds; the CC2525KCP-20 features self-propelled drive for easy cutting and still fits through a 30″ door frame. A rigid; high strength 3/16″ steel box frame with heavy bar reinforcement supports the saw; with positive gear drive to the rear axle via Eaton hydrostatic transmission. This saw is compatible with a 20″ blade.

FEATURES:

• Kohler Command EFI engine converted to propane vapor draw.
• Rigid high strength 3/16″ steel box frame with heavy bar reinforcement.
• Two-position tilt handlebars.
• Self-propelled drive for easy cutting.
• Screw feed raise and lower with optional power raise and lower.
• Cyclone air filter.
• Positive gear drive to the rear axle via Eaton hydrostatic transmission.
• Fits through a 30″ door frame.

SPECIFICATIONS:

Max Depth of Cut with 20″ Blade	7-3/8″
Blade Shaft Diameter	Varies
Arbor Size	1″ with single drive pin
Blade Shaft Drive	5 belts
Blade Mounting	Right or left
Transmission	Eaton Model 6
Drive Speed	0-130 feet per minute
Fuel Tank Size	20 pound
Engine Power	25 HP
Weight (lbs.)	1;030

“
