Diamond Products Core Bore 6″ Weka DK12 – M-4 Complete Drill Rig 4240001

Diamond Products

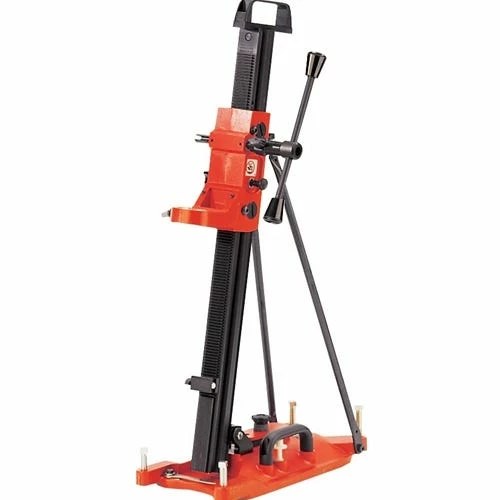

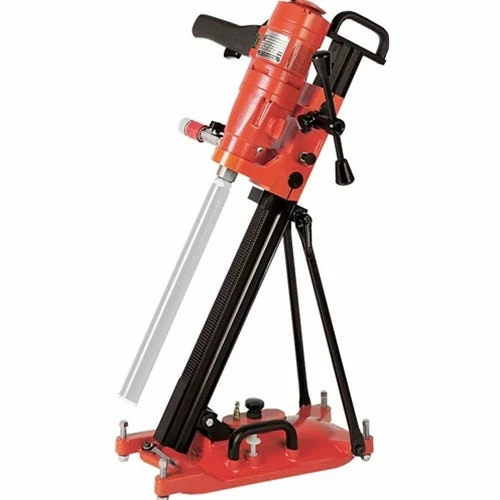

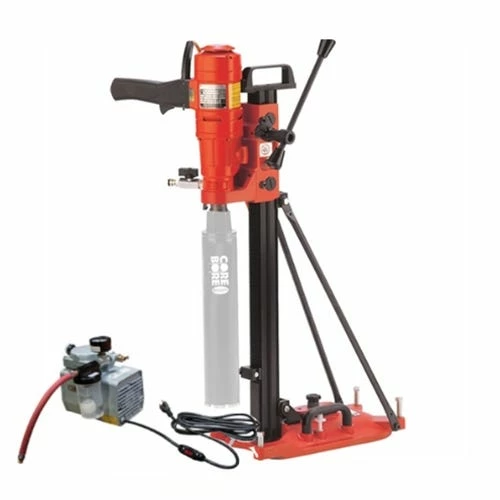

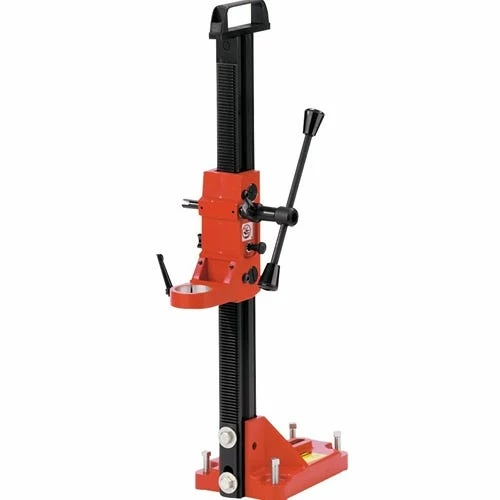

Core Bore 6 Weka DK12 with M-4 Complete Drill Rig 4240001

FEATURES:

• Great for the general contractor (basic drilling) or plumber (hand-held drilling); electrical or mechanical contractor
• Reversible slide handle (for use on left or right side)
• High strength; hard anodized 1-5/8 x 2 aluminum column
• Top carrying handle
• Quick release motor mount
• Carriage lock
• Leveling bolts on all model bases
• Hand-held option
• 4 Leveling screws on base
• Light weight and portable
• Combo bases have angle braces for drilling up to 45o
• 4 adjustable slide bearings provide superior carriage rigidity
• Quick change over from vacuum to anchor base

SPECIFICATIONS:

Engine/Motor Model	Motor/Engine Power	Engine/Motor Make	Motor RPM	Rig Type	Part Number	Catalog Number
DK12	14 amp; 115 volt	Weka	580/1400/2900	Complete rig with add-on vacuum base and vacuum pump	4240001	00020
DK13	14 amp; 115 volt	Weka	580/1400/2900	Complete rig with add-on vacuum base and vacuum pump	4240044	51033
DK16	19 amp; 110 volt	Weka	580/1400/2900	Complete rig with add-on vacuum base and vacuum pump	4240054	98393
4097-20	20 amp; 115 volt	Milwaukee	500/1000	Complete rig with add-on vacuum base and vacuum pump	4240002	01677
4004	20 amp; 115 volt	Milwaukee	300/600	Complete rig with add-on vacuum base and vacuum pump	4240004	46815
4096	20 amp; 115 volt	Milwaukee	450/900	Complete rig with add-on vacuum base and vacuum pump	4240005	01678
4005	20 amp; 115 volt	Milwaukee	600/1200	Complete rig with add-on vacuum base and vacuum pump	4240006	01679
DK12	7 Amp Weka Dk12 (230V)	Weka	580/1400/2900	Complete rig with add-on vacuum base and vacuum pump	4240009	60114
DK12	14 amp; 115 volt	Weka	580/1400/2900	Complete rig without vacuum pump	4240046	66489
DK16	19 amp; 110 volt	Weka	580/1400/2900	Complete rig without vacuum pump	4240057	08871
4097-20	20 amp; 115 volt	Milwaukee	500/1000	Complete rig without vacuum pump	4240048	68601
4004	20 amp; 115 volt	Milwaukee	300/600	Complete rig without vacuum pump	4240050	89951
4096	20 amp; 115 volt	Milwaukee	450/900	Complete rig without vacuum pump	4240051	721
4005	20 amp; 115 volt	Milwaukee	600/1200	Complete rig without vacuum pump	4240052	76402
DK12	7 Amp Weka Dk12 (230V)	Weka	580/1400/2900	Complete rig without vacuum pump	4240053	10169
DK12	14 amp; 115 volt	Weka	580/1400/2900	Anchor rig	4240010	46871
DK13	14 amp; 115 volt	Weka	580/1400/2900	Anchor rig	4240045	61221
DK16	19 amp; 110 volt	Weka	580/1400/2900	Anchor rig	4240055	98683
4097-20	20 amp; 115 volt	Milwaukee	500/1000	Anchor rig	4240011	48859
4004	20 amp; 115 volt	Milwaukee	300/600	Anchor rig	4240013	696
4096	20 amp; 115 volt	Milwaukee	450/900	Anchor rig	4240014	52505
4005	20 amp; 115 volt	Milwaukee	600/1200	Anchor rig	4240015	58320
DK12	7 Amp Weka Dk12 (230V)	Weka	580/1400/2900	Anchor rig	4240016	87938
DK12	14 amp; 115 volt	Weka	580/1400/2900	Swivel rig	4240030	46983
DK16	19 amp; 110 volt	Weka	580/1400/2900	Swivel rig	4240056	98684
4097-20	20 amp; 115 volt	Milwaukee	500/1000	Swivel rig	4240031	80917
4004	20 amp; 115 volt	Milwaukee	300/600	Swivel rig	4240033	10170
4096	20 amp; 115 volt	Milwaukee	450/900	Swivel rig	4240034	68389
4005	20 amp; 115 volt	Milwaukee	600/1200	Swivel rig	4240035	93513
DK12	7 Amp Weka Dk12 (230V)	Weka	580/1400/2900	Swivel rig	4240036	76985
DK13	14 amp; 115 volt	Weka	580/1400/2900	Complete rig without vacuum pump	4240047	66975

“
