Diamond Products Core Bore 24″ WEKA DK52 480V-3P Rig Motor 4244060

Diamond Products

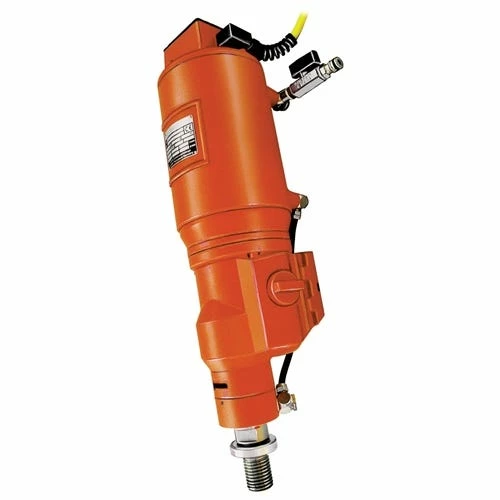

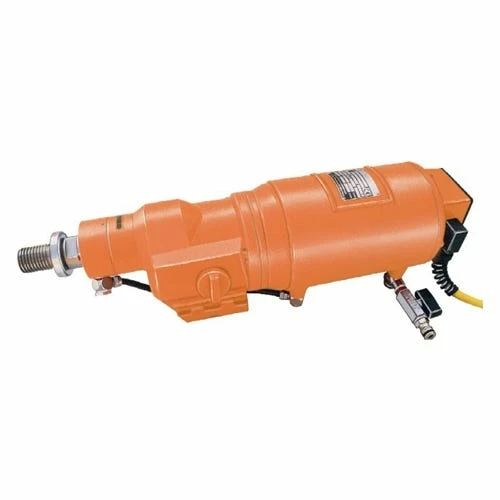

Core Bore WEKA DK52 480V-3P Rig Motor 4244060

FEATURES:

• Rig Motor for M-6 and others
• Slip Clutch
• 8 amp(480v 3 Phase)
• 150/290/440 RPM
• Heavy duty
• Water connection
• 1.250-7 threaded spindle
• Recommended for bits 3-20 Max 24

SPECIFICATIONS:

Engine/Motor Model	Motor/Engine Power	Engine/Motor Make	Motor RPM	Includes flange adapter for M-5 PRO only	Part Number	Catalog Number
DK22 (110v)	23 amp; 110 volt	Weka	300/640/960	No	4244018	01741
DK22 (230v)	11 Amp Weka DK22 (230V)	Weka	300/640/960	No	4244016	47069
DK32 (110v)	30 amp; 110 volt	Weka	230/480/720	No	4244059	46896
DK32 (230v)	15 AMP (230V)	Weka	230/480/720	No	4244058	47071
DK42 (230v)	14.2 amp; 230 volt; three-phase	Weka	190/410/610	No	4244023	01744
DK42 (460v)	8.2 amp; 460 volt; three-phase	Weka	190/410/610	No	4244022	01743
DK52 (230v)	18 amp; 230 volt; three phase	Weka	150/290/440	No	4244061	48023
DK52 (460v)	9 amp; 460 volt; three-phase	Weka	150/290/440	No	4244060	47119

“
