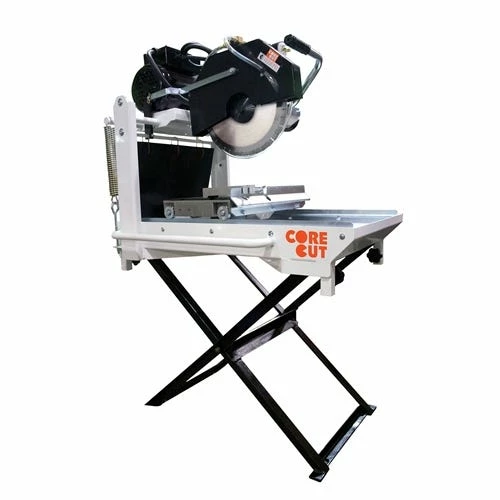

Diamond Products 14″ Core Cut 1.5HP Electric CC515MXL2-E1 Masonry Saw 03725

Diamond Products

CC515MXL2-E1 1.5 HP Baldor-115/230V Electric Masonry Saw 03725

FEATURES:

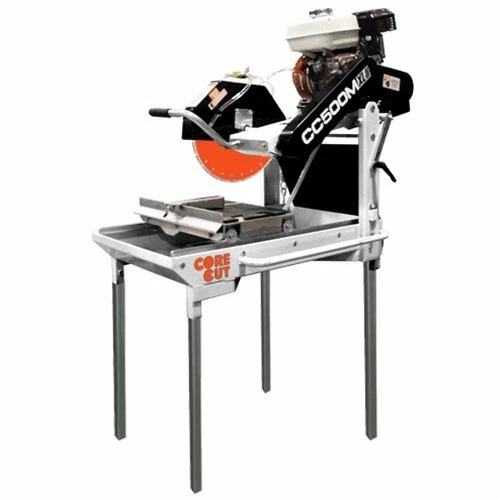

• CC515MXL2E1 14″ Masonry Saw with 1.5 HP Single Phase 115/230 Volt Baldor Electric Motor 03725 (NOT GAS MOTOR PICTURED)
• Legs standard on all saws (NOT FOLDING STAND)
• Water pump standard
• Stay level blade guard
• Removable cutting head
• Leg kit standard-folding stand optional
• Side carrying handles
• Replaceable conveyor cart rails
• Includes water pump
• Vulcanized rubber coated material slide cart
• Open throat cutting
• Easy and safe access to depth control lock
• Open back cutting allows longer material to be cut
• Heavy duty frame design help resist damage to saw body
• Reinforced slide rails keep the cart running smoothly
• Simple yet strong design allows easy maintenance
• Sealed drain hole on the bottom of the tray allows quick clean up

SPECIFICATIONS:

Maximum Depth of Cut:	5
Blade Shaft Diameter:	7/8
Arbor Diameter:	1
Blade Shaft Bearings:	Flange block ball bearings
Blade Shaft Drive:	2 belt
Blade Mounting:	Right (electric); Left (gas)
Blade Raise/Lower:	Counterbalanced; spring tensioned head pivots on two 7/8 flange block bearings
Blade Coolant:	Dual spray tubes; pump fed (electric models); pump from tray (gas models)
Air Filter:	3-stage cyclone (gas models)
Fuel Capacity:	1 gallon (gas models)
High Temp Shut-off:	Included (electric models)

Blade Capacity	Power Source	Engine/Motor Make	Engine/Motor Model	Motor/Engine Power	Part Number Catalog	Number
14	Electric	Baldor	N/A	1.5 HP; Single Phase; 115 or 230 volt	5800799	03725
14	Electric	Baldor	N/A	2 HP; Single Phase; 115 or 230 volt	5800814	08667
14	Electric	Baldor	N/A	2.5 HP; Single Phase; 115 or 230 volt	5800801	03726
14	Electric	Baldor	N/A	3 HP; Single Phase; 230 volt	5800802	03728
14	Gas	Briggs & Stratton	Vanguard	6.5 HP	5801217	23961
14	Gas	Lifan	LF168F	6.5 HP	5801101	34008

“
